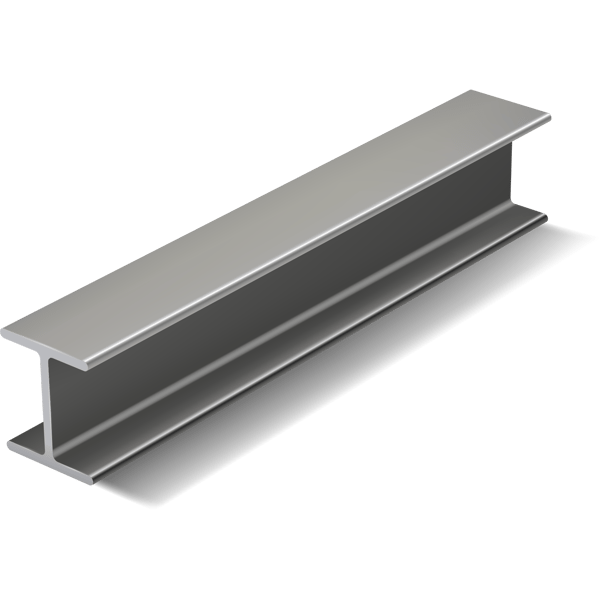

Carbon Steel H Steel (H Beam)

Carbon Steel H Steel, commonly known as H Beam, is a highly efficient structural steel shape used widely in heavy-duty construction and industrial applications. Its unique wide flange and I-shaped cross-section provide excellent load-bearing capacity, high strength-to-weight ratio, and outstanding durability, making it a preferred choice for bridges, buildings, and large-scale infrastructure projects.

---

Key Feature

• Excellent Load-Bearing Capacity
  Wide flanges provide superior load distribution and support, ideal for vertical and horizontal stress applications.

• High Strength & Durability
  Made from high-quality carbon steel that offers exceptional tensile strength and long-term structural integrity.

• Cost-Effective & Efficient Design
  Optimized shape reduces steel usage while maintaining maximum strength, leading to lighter structures and lower material costs.

• Excellent Weldability & Workability
  Easily cut, drilled, welded, and fabricated for custom engineering solutions.

• Corrosion Protection Options
  Available with galvanizing, coating, or painting for extended life in corrosive environments.

---

Applications of Carbon Steel H Steel (H Beam)

• High-rise buildings

• Bridge construction

• Shipbuilding

• Offshore platforms

• Warehouse structures

• Industrial plants

• Large-scale support frames

• Heavy equipment manufacturing

• Structural frameworks for cranes and conveyors

• Railways and transportation infrastructure

---

Technical Specifications

Property	Specification
Material	Carbon Steel
Shape	H Beam
Manufacturing Process	Hot Rolled
Standards	ASTM A36, ASTM A572, JIS G3101 SS400, EN 10025 S275JR/S355JR
Width Range	100mm to 1000mm
Height Range	100mm to 1200mm
Web Thickness	5mm to 80mm
Flange Thickness	6mm to 80mm
Length	6m, 9m, 12m (custom lengths available)
Tensile Strength	400–630 MPa (depending on grade)
Yield Strength	250–450 MPa (depending on grade)
Surface Finish	Black (as-rolled), Galvanized, Coated
Tolerances	As per ASTM/EN/JIS standards
Weldability	Excellent

Available Grades

• ASTM A36

• ASTM A572 Gr 50/Gr 60

• EN10025 S275JR / S355JR / S355J2

• JIS G3101 SS400 / SM490

• Custom grades available upon request

---

Manufacturing Standards

• ASTM A6/A6M

• ASTM A36 / A572

• EN 10025

• JIS G3101

• ISO 9001 Certified Production

• Full Mill Test Certificates (MTC) Provided

• RoHS & REACH Compliant

---

Storage & Handling Recommendations

• Store in dry, covered environments

• Use proper lifting equipment to prevent bending or damage

• Apply protective coating if long-term storage is expected

---

Advantages of Choosing Carbon Steel H Steel (H Beam)

• High strength-to-weight ratio reduces overall structural weight

• Excellent stability for large-span structures

• Efficient design reduces material consumption

• Easily fabricated for complex structures

• Versatile for various load conditions

• Long lifespan with proper protection

• Cost-effective for large-scale projects

---

FAQ For This Product

What is Carbon Steel H Steel used for?It’s used extensively in building structures, bridges, heavy equipment, offshore platforms, and infrastructure projects due to its high load-bearing strength.What’s the difference between H Beam and I Beam?H Beam has wider flanges and a thicker web, providing better load distribution and making it stronger for longer spans compared to traditional I Beams.Is Carbon Steel H Beam weldable?Yes, it offers excellent weldability and is easily fabricated into complex structures.What grades are commonly used for Carbon Steel H Beams?Common grades include ASTM A36, A572 Gr 50, EN S275JR/S355JR, and JIS SS400/SM490.Do you offer custom sizes and lengths?Absolutely. We offer cutting, drilling, and fabrication services based on project requirements.Are mill test certificates provided?Yes, full Mill Test Certificates (MTC) and certifications are provided with every shipment.
